What is the difference between diamond grinding and acid etching?

Diamond grinding achieves a consistent CSP 2-3 profile, removes oil and old coatings, and creates a clean bond surface with no residue. Acid etching produces an inconsistent CSP 1-2 profile, does not remove oil or coatings, and leaves calcium carbonate residue that acts as a bond breaker.

Why is a moisture barrier important for epoxy floors in Calgary?

Calgary's clay-heavy soil and variable water tables make moisture the single biggest risk factor for epoxy floors. The best first coat on bare concrete is a moisture vapor barrier primer - it seals the slab and prevents osmotic blistering and delamination, which typically shows up 1-2 winters after installation when freeze-thaw cycles drive more moisture through the slab.

preparation

WHY CONCRETE PREP DETERMINES WHETHER YOUR FLOOR LASTS.

Concrete preparation is the single most important step in any epoxy floor installation. Epoxy Floors Canada diamond grinds every slab with a Werkmaster Raptor XT planetary grinder to create a mechanical bond profile. The best first coat on bare concrete is a moisture barrier primer that seals the slab. Without proper prep, any coating will eventually peel - regardless of the product used.

60-80% of premature coating failures trace to bad prep. We diamond grind every slab to CSP 2-3, repair every crack, and usually start the coating build with a moisture barrier prime coat that seals the slab before the first layer goes down.

Get Instant Quote

See Our Full Process

The Foundation of Everything.

60–80% of all premature coating failures trace directly to inadequate surface preparation. Diamond grinding creates the mechanical profile (CSP 2-3) that the coating locks into. Without it, even the best epoxy sits on top instead of bonding.

This is not an opinion. It is an industry-documented fact backed by ICRI (International Concrete Repair Institute) guidelines. When a floor peels, blisters, or delaminates within the first few years, the root cause is almost always what happened - or didn't happen - before the first layer went on.

Diamond Grinding vs Acid Etching.

We grind every slab. We never etch. Here is why.

DIAMOND GRINDING

Profile Achieved

CSP 2-3 (consistent)

Surface Consistency

Uniform across full slab

Contaminant Removal

Removes oil, coatings, curing compounds

Dust Control

HEPA extraction at source

Residue

None - clean bond surface

Result

Mechanical bond that holds

ACID ETCHING

Profile Achieved

CSP 1-2 (inconsistent)

Surface Consistency

Uneven - varies across slab

Contaminant Removal

Does not remove oil or old coatings

Dust Control

N/A - creates chemical waste

Residue

Calcium carbonate (bond breaker)

Result

Weaker bond - higher risk of early failure

“Painters etch, professionals grind.”

Professional-Grade Tools.

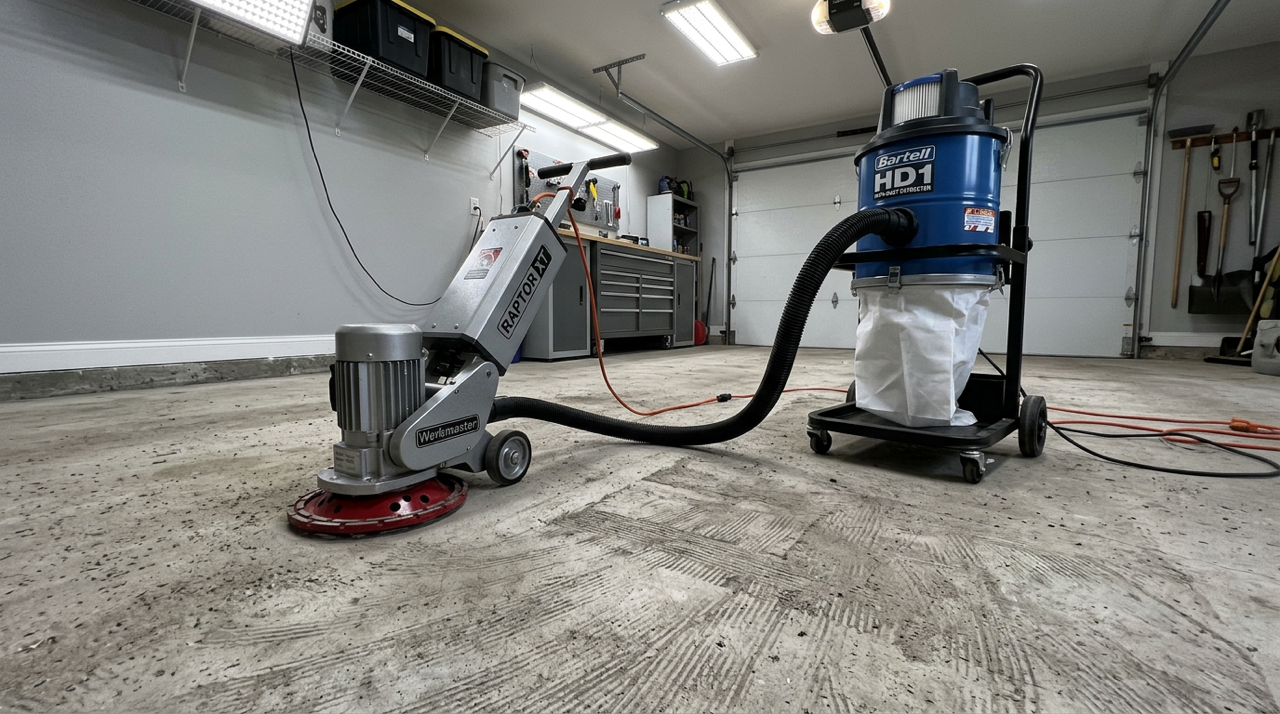

WERKMASTER XT PLANETARY GRINDER

Our primary grinding tool. The planetary head pattern eliminates swirl marks and delivers a consistent CSP across the full field.

→ Planetary head eliminates swirl marks

→ Consistent CSP 2-3 across entire slab

→ Soft-bond diamond segments for Calgary’s medium-to-hard concrete

→ Variable speed for different concrete hardness

BARTELL HD1 HEPA DUST EXTRACTOR

Connected to the grinder for the entire grinding process. Your house stays clean.

→ Two-stage filtration (conical + HEPA)

→ Reverse-air jet-pulse self-cleaning

→ 99.97% particulate capture

→ Connected to grinder entire time

→ Captures respirable silica

What We’re Looking For.

Every slab is different. We assess the condition and adjust our approach before any product goes down.

NEW / CLEAN CONCRETE

Standard grinding to CSP 2-3. Check for curing compounds that can act as bond breakers. New slabs need at least 28 days to cure before coating.

OIL-STAINED

Heavy-duty degreaser applied first, followed by aggressive grinding with coarser diamond segments. Oil saturated into the concrete must be removed mechanically - not just surface cleaned.

PREVIOUSLY COATED

PCD (polycrystalline diamond) tooling to strip old coating before profiling. We grind down to bare concrete on every previously coated slab. No coating over old coatings.

CRACKED / SPALLED

Crack repair and patching before grinding. We assess each crack type - structural vs. shrinkage - and apply the appropriate repair. Coating over untreated cracks leads to telegraphing.

EFFLORESCENCE

White mineral deposits on the surface indicate moisture migration. Mechanical removal plus pH testing. If efflorescence is present, a moisture barrier prime coat is especially important before coating.

Every Slab Gets Tested.

The best first coat on bare concrete is a moisture barrier primer, applied before any other product. It seals the slab and blocks vapour drive - this is what prevents blistering and delamination years down the road.

When moisture is ignored, what happens is osmotic blistering. Moisture vapor pushes through the slab at 10–20 PSI of pressure. If the coating cannot handle that pressure, it lifts. You see bubbles first, then sections delaminate. This typically shows up 1–2 winters after installation, when freeze-thaw cycles drive more moisture through the slab.

Our usual build starts with an MVB moisture vapour barrier prime coat, so elevated slab moisture is handled before it can lift a coating. Calgary's clay-heavy soil and variable water tables make moisture the single biggest risk factor for epoxy floors in this market.

Test Method

Moisture Barrier

Non-Invasive Check

Threshold

75% RH

MVB required above

Blister Pressure

10–20 PSI

Osmotic blistering force

Frequency

Every Job

No exceptions

Risk Factor

#1 in Calgary

Clay soil + water table

Failure Timeline

1–2 Winters

When untested

← Swipe through the specs →
